Guitar Tone Capacitors Explained: Values, Types, and How to Choose One

A guitar tone capacitor is a small component with a big job: as you roll back the tone control, it provides a path that sends more high-frequency content to ground. The result is a darker, rounder sound—anything from a subtle softening of pick attack to an almost wah-like, vocal roll-off.

The most important specification is usually the capacitor’s value, measured in microfarads (µF). Construction type, tolerance, condition, and the rest of the guitar’s circuit matter too, but a change from 0.022 µF to 0.047 µF will generally be more audible and predictable than swapping two accurately measured 0.022 µF capacitors made from different materials.

What the tone capacitor does

In a standard passive guitar circuit, the tone pot and capacitor work together as a treble-bleed-to-ground network. With the tone control fully open, relatively little high end is shunted away. As the knob turns down, the pot connects more of the capacitor into the circuit and the guitar loses progressively more treble.

The effect depends on several parts working together:

• The capacitor’s µF value.
• The tone-pot value and taper, commonly 250k or 500k.
• Pickup inductance, output, and inherent brightness.
• Volume-pot value, cable capacitance, amp input, and gain settings.
• Where the tone knob is set—not just how the guitar sounds with it on 10.

As a useful rule, a higher capacitor value lets the tone control reach a deeper, darker range; a lower value preserves more upper-frequency content when the control is rolled down.

Common capacitor values

The familiar 0.022 µF and 0.047 µF choices are not arbitrary: 0.022 µF is widely treated as the contemporary default, while 0.047 µF remains common on brighter Fender-style single-coil guitars because it yields a deeper roll-off.

Matching a cap to pickups

A practical place to begin is to choose based on the guitar’s starting brightness and how you actually use the tone knob.

Traditional pot pairings are often 250k with 0.047 µF in many single-coil Fender-style circuits and 500k with 0.022 µF in many humbucker circuits. Treat that as a reliable starting point, not a rule: the pot and cap operate together, and pickup voicing may justify a different choice.[northwestguitars.co]

Capacitor construction types

Capacitors come in many packages and dielectric materials. In a guitar, these types are frequently marketed as tonal upgrades, but their major practical differences are often size, price, appearance, durability, tolerance, and vintage authenticity.

Ceramic disc

Ceramic discs are compact, inexpensive, and common in production guitars. They can work perfectly well as tone capacitors.

• Best for cost-effective repairs and standard production wiring.
• Easy to fit in cramped cavities.
• Often associated with vintage Fender-style electronics because of their historical use.
• Avoid assuming that “ceramic” automatically means harsh; capacitance, tolerance, and leakage are more meaningful electrical variables than the label or appearance alone.

Polyester film

Polyester, often called Mylar, is one of the most common choices for guitar wiring. Mallory 150-style capacitors and many yellow or green film capacitors fall into this broad family.

• Reliable, affordable, and readily available.
• A strong choice for regular repair work, custom harnesses, and production instruments.
• Frequently selected when a builder wants a classic look without the bulk or expense of paper-in-oil parts.
• Excellent option for stocking a practical range such as 0.015, 0.022, 0.033, and 0.047 µF.

Polypropylene film

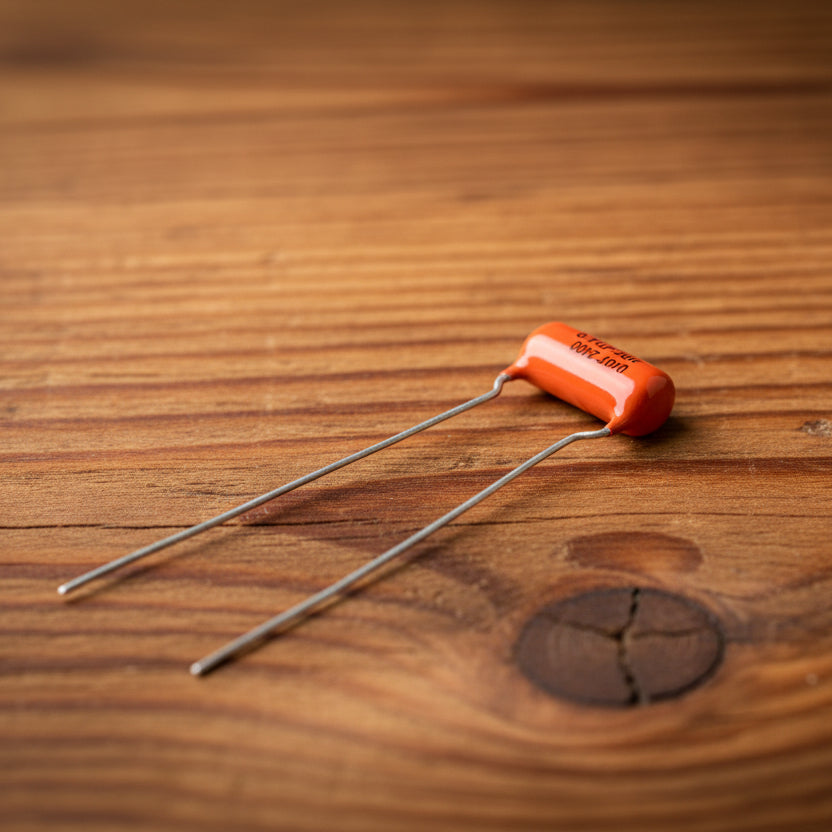

Polypropylene capacitors are often sold in guitar circles as Orange Drop-style capacitors, though “Orange Drop” is a product family rather than a single dielectric or construction.

• Physically larger than many ceramic or polyester options.
• Stable and durable, with strong perceived quality.
• Popular in higher-end harnesses because of their appearance, repeatability, and brand recognition.
• A good choice when the cavity has room and a customer wants a familiar premium-format component.

For a standard passive tone circuit, choose a polypropylene cap for build quality, visual presentation, or a specific measured value—not because its orange casing guarantees a different sound from another low-leakage capacitor of the same actual capacitance.

Paper-in-oil

Paper-in-oil, or PIO, capacitors are closely associated with vintage Gibson wiring, “bumblebee” reproductions, and boutique harnesses.

• Popular for vintage-correct restorations and premium custom builds.
• Usually larger and more expensive than modern film capacitors.
• Often chosen for historical appeal, aesthetics, and collector preference.
• Available as genuine vintage parts, modern reproductions, and various military-surplus styles.

A PIO cap can be a great fit for a period-correct Les Paul-style harness, but “paper-in-oil” alone is not a guarantee of a particular tonal result. Two caps that have the same measured value and low leakage can perform equivalently in a guitar tone circuit despite differences in rated voltage, size, dielectric, or price.

Vintage and specialty styles

These include bumblebee reproductions, Black Beauty styles, “tropical fish” capacitors, Russian military PIO caps, and aged or NOS components.

Their value is often more about presentation than pure frequency response:

• They can reinforce a vintage-correct visual story for a restoration or custom instrument.
• Larger bodies can make a control cavity look more premium in product photography.
• Vintage components can vary significantly from their printed values due to wide tolerances and age.
• Test actual capacitance and leakage before installing genuine old stock parts.

For a guitar-parts brand, these are compelling as a heritage or boutique option—but it is good business and good technical practice to state the measured capacitance and tolerance rather than relying only on vintage-style marketing.

Tolerance matters more than the label

Capacitors are marked with nominal values, but their actual capacitance may vary. A 0.022 µF capacitor with a 20% tolerance can legally measure from approximately 0.0176 µF to 0.0264 µF. That range can overlap with what a player might describe as the difference between one nominal cap value and another.

For that reason, a properly measured 0.022 µF film capacitor may be a more consistent choice than an unmeasured boutique capacitor printed “0.022.” Testing and sorting caps by actual value can be a meaningful selling point for a premium wiring-harness line. Research comparing tone capacitors has concluded that equal measured capacitance and low leakage are the key conditions for matching tonal behavior.

Voltage rating: how much is enough?

Electric-guitar passive circuits run at extremely low voltages. A 50V, 100V, 200V, 400V, or 600V capacitor is not “higher headroom” in the amplifier sense; any of those ratings is electrically far above what a normal passive guitar needs.

Higher voltage ratings can affect:

• Component size.
• Construction and available package styles.
• Vintage-correct appearance.
• Price.

They do not, by themselves, make the guitar louder, clearer, or more dynamic. Choose the voltage rating for fit, reliability, available stock, or aesthetic authenticity—not tone.

A practical selection strategy

For repairs, mods, and a small parts inventory, a focused range covers nearly every standard customer need:

• 0.010 µF for subtle, clear humbucker roll-off.
• 0.015 µF for dark neck humbuckers.
• 0.022 µF as the core all-purpose and humbucker value.
• 0.033 µF as the useful in-between option.
• 0.047 µF for single coils and deeper tone shaping.
• 0.100 µF for vintage, bass, and specialty requests.

If you are building a Thunderbird Guitar Works capacitor lineup, consider offering each common value in two tiers:

A clear product listing can say: “Measured 0.022 µF tone capacitor, ±5% selected value, suitable for humbuckers, P-90s, and general-purpose guitar wiring.” That is more technically meaningful than promises of “magic vintage tone.”

Bottom line

Start with 0.022 µF for most humbucker and general-purpose guitar builds, 0.047 µF for brighter single-coil circuits, and 0.015 µF when you want a neck humbucker to retain more clarity with the tone rolled back. The value establishes the usable tonal range; the cap type should then be chosen for fit, reliability, measured tolerance, visual style, and the kind of instrument or wiring harness you are building.
