A potentiometer—usually called a pot—is the adjustable resistor behind a guitar’s volume and tone knobs. Pots look simple, but their resistance value, taper, shaft type, physical size, tolerance, and extra switching features all affect how a guitar feels and responds.
If you are replacing a worn control, building a wiring harness, or trying to make a guitar brighter, warmer, smoother, or more usable at lower knob settings, choosing the right pot matters.
What a guitar pot does
A standard guitar pot has three lugs:
-
One outer lug connects to one end of the resistive track.
-
The other outer lug connects to the opposite end of the track.
-
The center lug is the moving contact, called the wiper.
As the knob turns, the wiper moves across the resistive track. In a volume control, this changes how much signal reaches the output. In a tone control, the pot works with a capacitor to send a variable amount of high-frequency signal to ground.
The two choices that most strongly affect a normal passive guitar circuit are:
-
Resistance value, usually 250k, 500k, or 1M.
-
Taper, usually audio/logarithmic or linear.
Shaft type and bushing length then determine whether the pot physically fits the guitar and its knob.
Pot resistance: 250k vs. 500k
The resistance value printed on a pot describes its maximum resistance. In passive guitar wiring, that value also affects how heavily the pot loads the pickup.
A lower-value pot places more load on the pickup and generally reduces more high-frequency content. A higher-value pot loads the pickup less and generally lets more of its natural treble through.
A 500k pot does not add treble that is not already present—it simply loads a passive pickup less than a 250k pot. That is why 500k pots are frequently used with humbuckers, which are often darker and warmer than traditional single coils. Conversely, 250k pots are a familiar choice for bright single-coil guitars because they help tame excessive edge.seymourduncan+1
Why 250k pots suit many single coils
Traditional Strat-style and Tele-style pickups can be bright, especially when paired with a clean amp, fresh strings, or a highly resonant guitar. A 250k volume pot loads the pickup more than a 500k pot, which can take off a little top-end bite and create a more balanced sound.
For a classic single-coil project, a CTS 250k audio-taper pot is a strong starting point. Thunderbird Guitar Works carries both short solid-shaft and short split-shaft CTS 250k options, so choose the version that matches your control knobs.
Use a 250k solid-shaft pot when your knob uses a side set screw. Use a 250k split-shaft pot when using a push-on, fine-knurled knob designed for a 24-spline shaft.
Why 500k pots suit many humbuckers
Humbuckers usually have more output, more midrange, and less perceived top-end than single coils. A 500k pot lets more high-frequency information remain in the circuit, helping preserve clarity, note separation, and attack.
For a traditional dual-humbucker guitar, 500k audio-taper pots are a dependable baseline. However, 250k pots can still be useful with an overly sharp or bright humbucker, while 1M pots can help a dark pickup sound more open.
There is no universal “correct” value. The best choice depends on the pickup, cable, amp, playing style, and how often the guitarist uses the controls.
Audio taper vs. linear taper
The taper describes how resistance changes as you rotate the shaft. Two pots can both be 500k, but they may feel completely different when you turn the knob.
A linear 500k pot measures approximately 250k from the wiper to one end at the midpoint of rotation. An audio-taper pot does not; its resistance curve is designed to better match how people perceive loudness.bareknucklepickups
Audio taper for volume controls
Our hearing does not perceive loudness in a straight line. Audio taper, also called logarithmic taper, spreads the perceived volume change more naturally across the knob’s travel.
This typically means:
-
More usable control at normal playing settings.
-
Smoother volume swells.
-
Less of an “off until 8, then suddenly loud” feel.
-
Better practical control for cleaning up an overdriven amp with the guitar’s volume knob.
For that reason, audio taper is the usual starting point for guitar volume controls.seymourduncan+1
Linear taper for tone controls
A linear taper changes resistance evenly across the rotation. Some players prefer it for tone controls because it can provide a more predictable-feeling sweep, especially when they use the tone knob between 3 and 8 instead of treating it as an on/off setting.
That said, many production guitars use audio taper pots for both volume and tone. There is no rule that says a tone control must be linear. Try the taper that makes the useful part of the knob’s sweep fall where your hand expects it.
Shaft types: solid vs. split shaft
The electrical value may be correct, but the pot still has to fit the guitar and the knob.
Solid shaft
A solid shaft is a smooth, one-piece shaft, usually 1/4 inch in diameter. It is commonly used with knobs that have a small side set screw.
Typical applications include:
-
Tele-style dome knobs.
-
Barrel knobs.
-
Many metal knobs.
-
Some custom or vintage-style knobs.

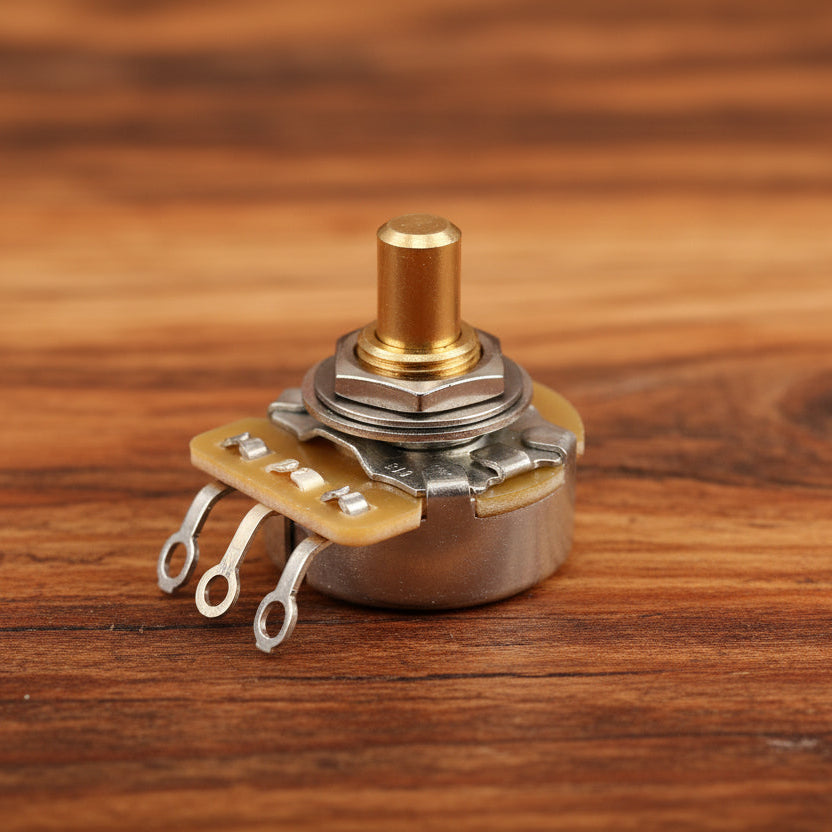

The short solid-shaft CTS 250k pot is a practical choice for a Tele-style control plate or any build using set-screw knobs.
Split shaft
A split shaft is divided at the top and usually has fine knurling. It is designed for push-on knobs that grip the knurled shaft.
Typical applications include:
-
Many Strat-style plastic volume and tone knobs.
-
Many Gibson-style plastic knobs.
-
Push-on replacement knobs designed for 24-spline/fine-knurled shafts.
Before buying, confirm the knob’s spline count. Many US-spec CTS split-shaft pots use fine 24-spline knurling, while some import pots use coarse 18-spline shafts. A knob designed for one may not fit securely on the other. CTS split shafts are commonly around 0.235–0.236 inches in diameter, while solid shafts are commonly 1/4 inch.stewmac+1
Short shaft vs. long shaft
Bushing length matters just as much as shaft style.
A short-shaft pot can leave too little thread exposed on a thick carved top. A long-shaft pot can protrude too far through a thin pickguard or Tele-style control plate.
Measure the thickness of the material where the pot mounts, then compare it with the pot’s threaded-bushing length. Standard CTS short-shaft threaded sections are often about 3/8 inch, while long-shaft versions are often about 3/4 inch.stewmac
Pot tolerance and why it matters
A pot labeled 250k or 500k does not always measure exactly at that value. Its tolerance is the allowable range around the printed number.
For example:
-
A 250k pot with a 10% tolerance can measure roughly 225k to 275k.
-
A 500k pot with a 10% tolerance can measure roughly 450k to 550k.
-
A 20% tolerance allows a wider range.
That variation can affect brightness. A 500k pot that measures 550k will usually load a pickup less than one that measures 450k. For players who are particular about consistency, measured and closely matched pots can be worthwhile—especially in a two-volume or two-tone guitar.
Thunderbird Guitar Works’ CTS 250k pots are specified with a 10% tolerance, making them a more consistent choice than many general-purpose pots with wider tolerances.
Standard, push-pull, and specialty pots
Not every pot is just a simple volume or tone control.
Standard pots
A standard pot has three terminals and performs one control function: volume, tone, blend, or another variable resistance function.
They are the simplest, most reliable choice when the guitar does not need switching.
Push-pull pots
A push-pull pot combines a normal potentiometer with a DPDT switch. Pulling the knob up activates the switch.
Common uses include:
-
Coil splitting a humbucker.
-
Series/parallel pickup wiring.
-
Phase switching.
-
Turning a treble-bleed network or capacitor option on and off.
-
Switching between two tone-capacitor values.
Push-pull pots are useful when you want more switching without drilling additional holes, though their deeper body may not fit shallow cavities.
Push-push pots
Push-push pots provide similar switching but use a press-to-latch mechanism rather than a pull-up shaft. They can be convenient for players who want quick access onstage, but often cost more and may have different mechanical requirements.
No-load tone pots
A no-load pot has a detent at full clockwise rotation. At that setting, it disconnects from the circuit, removing the tone pot’s normal loading effect.
This can give a slight increase in brightness or openness at “10,” while the rest of the sweep functions similarly to a normal tone control.
Blend pots
Blend pots are often used in basses or pickup-mixing circuits. Many are center-detent types and may use dual-gang construction, meaning two potentiometer sections are operated by one shaft.
They are not normally interchangeable with a standard guitar volume pot.
Choosing the right pot
Use this quick guide as a starting point:
For a standard single-coil repair or build, begin with a 250k audio taper pot. If you need a solid shaft for a set-screw knob, use a solid-shaft version. If your project uses a push-on 24-spline knob, use a fine-knurled split-shaft version.
Potentiometers and tone capacitors
The volume and tone pots interact with the rest of the circuit. A tone capacitor does not work in isolation—the value of the tone pot changes the range and feel of the tone sweep.
A common single-coil starting point is:
-
250k volume pot.
-
250k tone pot.
-
0.047µF tone capacitor.
A common humbucker starting point is:
-
500k volume pot.
-
500k tone pot.
-
0.022µF tone capacitor.
These are starting points, not rules. A bright humbucker may work well with 250k pots or a 0.033µF capacitor. A dark single-coil guitar may benefit from 500k pots or a smaller capacitor value.
Installation considerations
Before ordering a replacement pot, verify all of these details:
-
Resistance value: 250k, 500k, 1M, or active-system value.
-
Taper: audio or linear.
-
Shaft: solid, split, push-pull, or push-push.
-
Knurl/spline count for push-on knobs.
-
Bushing length: short or long shaft.
-
Mounting-hole diameter.
-
Cavity depth, especially for push-pull pots.
-
Existing wiring layout and whether you need left-handed orientation.
-
Whether a new control knob is required.
If you are rewiring a complete control plate or pickguard, it is often easier to plan the pot, capacitor, switch, wire, output jack, and knobs together rather than replacing one piece at a time.
Bottom line
For most traditional single-coil guitars, begin with 250k audio taper pots. For most humbucker guitars, begin with 500k audio taper pots. Choose linear taper when you want a different control feel—especially for tone—and always confirm shaft type, spline count, bushing length, and cavity depth before ordering.
A pot is more than a replacement part: it is one of the simplest ways to fine-tune a guitar’s brightness, control sweep, and everyday playability.
